Building a Model

This guide shows how to define a reaction network using Antimony, create a 3D geometry, set up an application, and run a spatial simulation.

Prerequisites

  • pyvcell installed (pip install pyvcell)

Define a reaction network with Antimony

Antimony is a human-readable language for defining biochemical models. pyvcell can load Antimony strings directly:

import pyvcell.vcml as vc

antimony_str = """
    compartment ec = 1;
    compartment cell = 2;
    compartment pm = 1;
    species A in cell;
    species B in cell;
    J0: A -> B; cell * (k1*A - k2*B)
    J0 in cell;

    k1 = 5.0; k2 = 2.0
    A = 10
"""

biomodel = vc.load_antimony_str(antimony_str)

Inspect and correct the model

After import, you may need to adjust compartment dimensions. Membranes should be 2D:

model = biomodel.model
model.get_compartment("pm").dim = 2

print(model)
# Model(compartments=['ec', 'cell', 'pm'], species=['A', 'B'],
#       reactions=['J0'], parameters=['k1', 'k2'])

print(model.parameter_values)
# {'k1': 5.0, 'k2': 2.0}

Create a 3D geometry

Define a geometry with analytic subvolumes. Here we create a sphere inside a box:

geo = vc.Geometry(name="geo", origin=(0, 0, 0), extent=(10, 10, 10), dim=3)
geo.add_sphere(name="cell_domain", radius=4, center=(5, 5, 5))
geo.add_background(name="ec_domain")
geo.add_surface(name="pm_domain", sub_volume_1="cell_domain", sub_volume_2="ec_domain")

The order of add_sphere / add_background matters — subvolumes added first have higher priority. The sphere is carved out of the background.

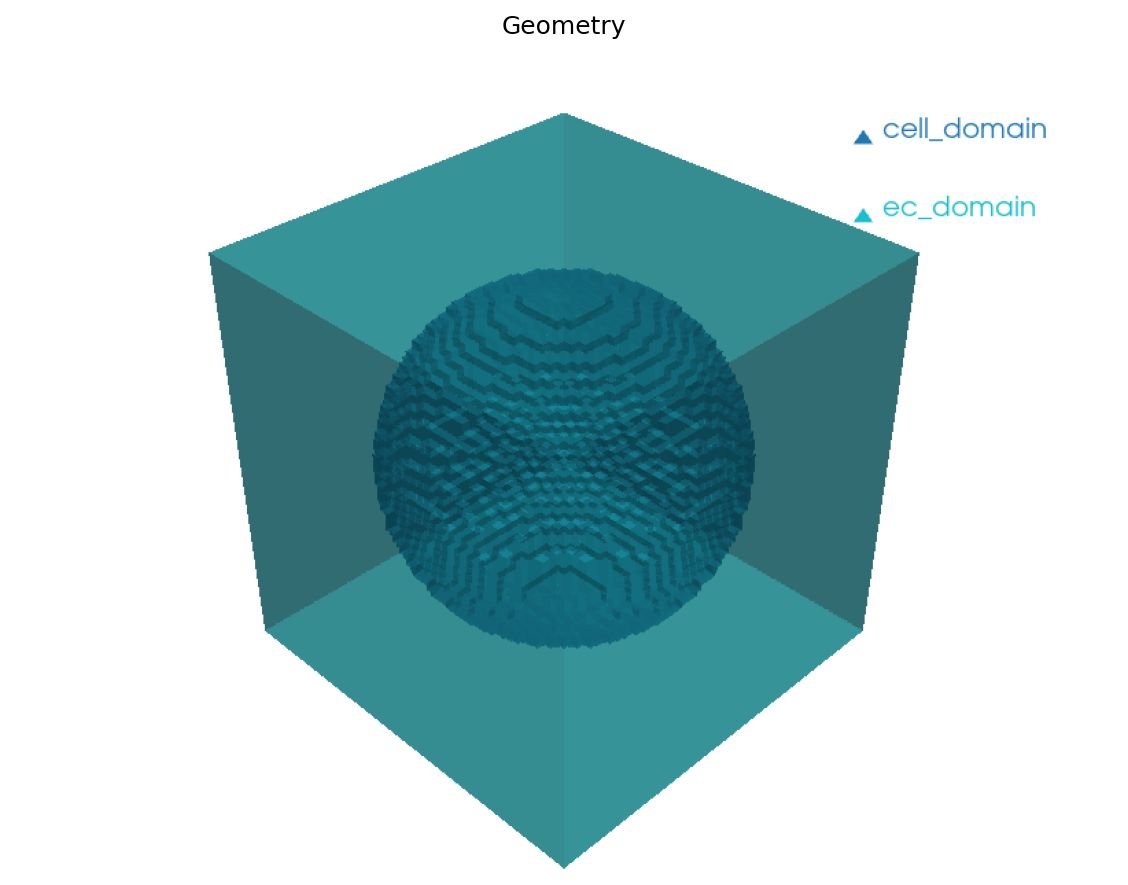

Geometry with sphere

Create an application

An application connects the model to the geometry by mapping compartments to geometric domains and species to initial conditions:

app = biomodel.add_application("app1", geometry=geo)

# Map compartments to geometry domains
app.map_compartment("cell", "cell_domain")
app.map_compartment("ec", "ec_domain")

# Map species with initial conditions and diffusion coefficients
app.map_species("A", init_conc="3+sin(x)", diff_coef=1.0)
app.map_species("B", init_conc="2+cos(x+y+z)", diff_coef=1.0)

Initial concentrations can be constants (e.g., 10.0) or spatial expressions using x, y, z coordinates.

Add a simulation and run

sim = app.add_sim(
    name="sim1",
    duration=2.0,
    output_time_step=0.05,
    mesh_size=(50, 50, 50),
)

results = vc.simulate(biomodel=biomodel, simulation="sim1")

Visualize results

results.plotter.plot_concentrations()
results.plotter.plot_slice_3d(time_index=0, channel_id="A")
results.plotter.plot_slice_3d(time_index=0, channel_id="B")

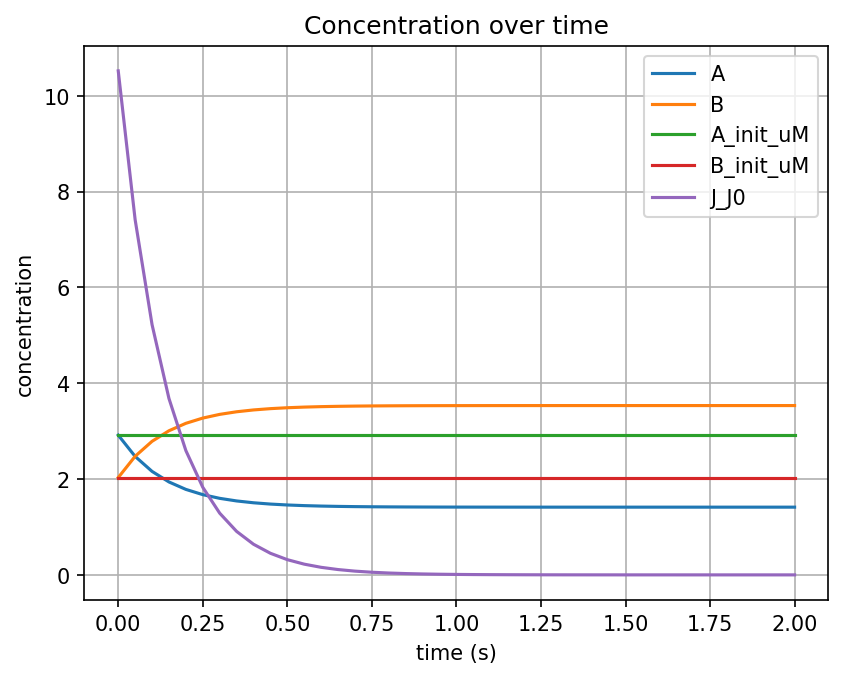

Concentration time series

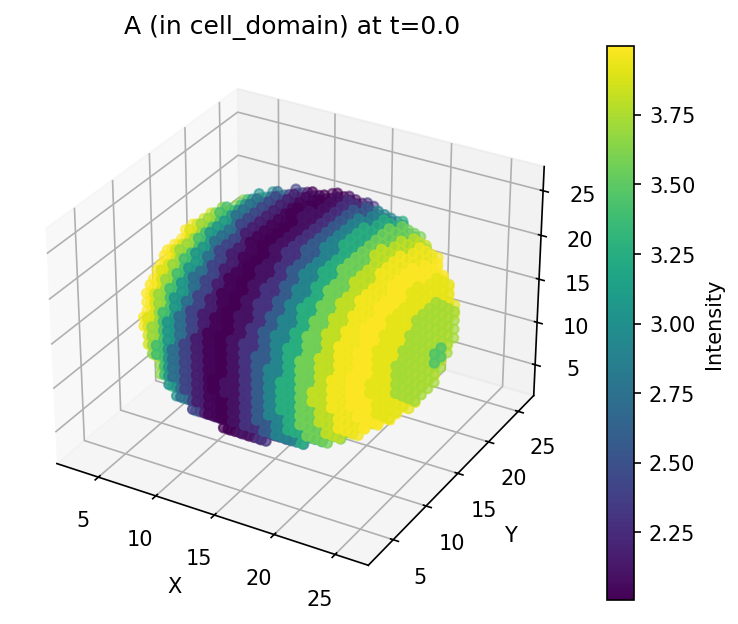

3D slice of species A

Complete example

import pyvcell.vcml as vc

# 1. Define reaction network
antimony_str = """
    compartment ec = 1;
    compartment cell = 2;
    compartment pm = 1;
    species A in cell;
    species B in cell;
    J0: A -> B; cell * (k1*A - k2*B)
    J0 in cell;
    k1 = 5.0; k2 = 2.0
    A = 10
"""
biomodel = vc.load_antimony_str(antimony_str)
model = biomodel.model
model.get_compartment("pm").dim = 2

# 2. Create geometry
geo = vc.Geometry(name="geo", origin=(0, 0, 0), extent=(10, 10, 10), dim=3)
geo.add_sphere(name="cell_domain", radius=4, center=(5, 5, 5))
geo.add_background(name="ec_domain")
geo.add_surface(name="pm_domain", sub_volume_1="cell_domain", sub_volume_2="ec_domain")

# 3. Create application
app = biomodel.add_application("app1", geometry=geo)
app.map_compartment("cell", "cell_domain")
app.map_compartment("ec", "ec_domain")
app.map_species("A", init_conc="3+sin(x)", diff_coef=1.0)
app.map_species("B", init_conc="2+cos(x+y+z)", diff_coef=1.0)

# 4. Simulate
sim = app.add_sim(name="sim1", duration=2.0, output_time_step=0.05, mesh_size=(50, 50, 50))
results = vc.simulate(biomodel=biomodel, simulation="sim1")

# 5. Visualize
results.plotter.plot_concentrations()
results.plotter.plot_slice_3d(time_index=0, channel_id="A")

Interactive tutorial

See the Building a Model tutorial for a runnable notebook with visual output, or the sysbio-1-antimony notebook for the course version.
