Visualization & Analysis

This guide covers pyvcell's built-in visualization tools: concentration time series, 2D/3D slices, animations, and interactive Trame widgets.

Prerequisites

  • pyvcell installed (pip install pyvcell)
  • A simulation result (see Quick Start)

The Plotter API

Every simulation Result includes a plotter object with methods for common visualizations:

import pyvcell.vcml as vc

biomodel = vc.load_vcml_file("model.vcml")
result = vc.simulate(biomodel, "sim1")

plotter = result.plotter

Concentration time series

Plot mean concentrations of all species over time:

result.plotter.plot_concentrations()

This generates a line plot with one curve per species, showing how mean concentration evolves over the simulation duration.

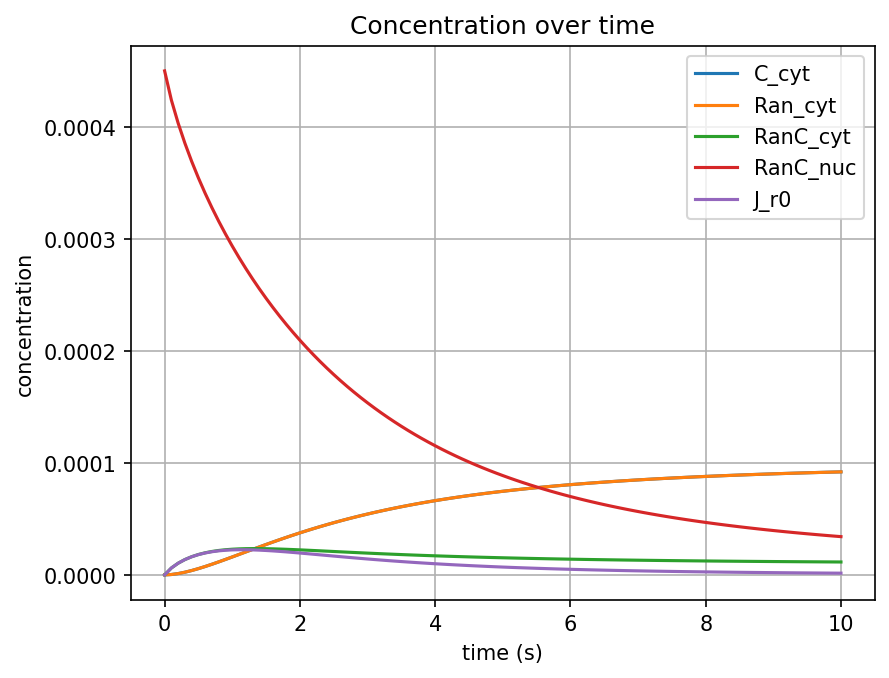

Concentration time series

Plot averages (post-processing)

For post-processing variable statistics:

result.plotter.plot_averages()

2D slices

View a 2D cross-section of the spatial data at a specific z-index:

result.plotter.plot_slice_2d(
    time_index=0,
    channel_name="s0",
    z_index=5,
)

Parameters:

  • time_index — which saved time point to display
  • channel_name — the species/variable name
  • z_index — the z-plane to slice through

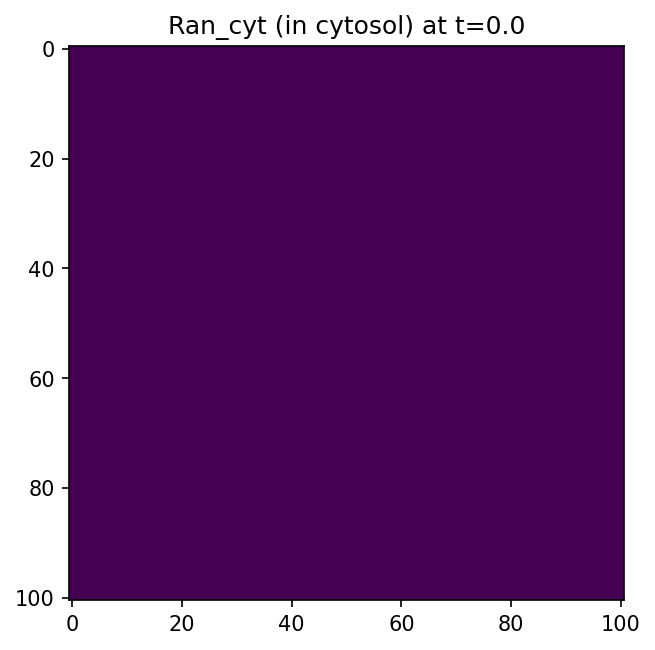

2D slice

3D volume slices

Render a 3D orthogonal-slice view of the data:

result.plotter.plot_slice_3d(
    time_index=3,
    channel_id="s1",
)

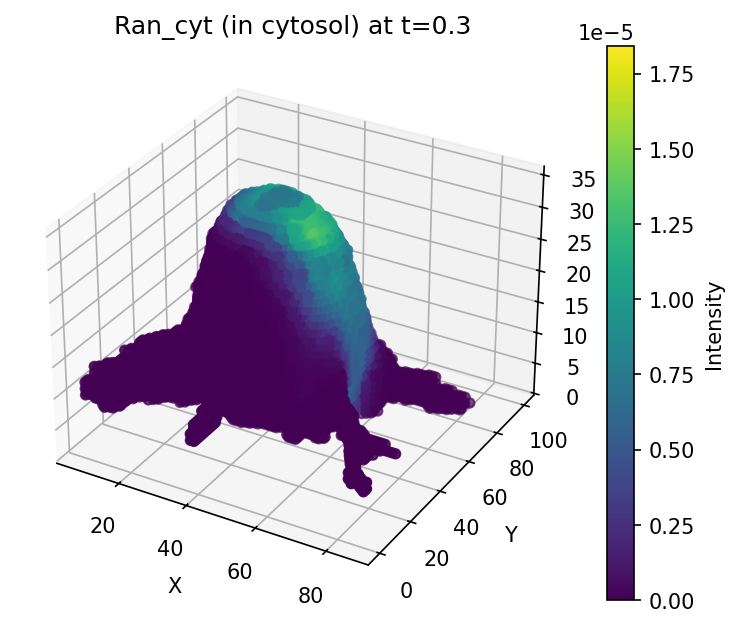

3D volume slice

Animations

3D slice animation over time

Create an animation that cycles through time points for a given channel:

anim = result.plotter.animate_channel_3d(channel_id="s0")

In Jupyter notebooks, the animation renders inline. In scripts, use Matplotlib's animation saving:

anim.save("s0_animation.gif", writer="pillow")

Image animation

anim = result.plotter.animate_image(channel_index=4)

Accessing raw data

Channel metadata

# List all channels
print([c.label for c in result.channel_data])

# Get a specific channel
channel = result.plotter.get_channel("s0")
print(channel.min_values)   # min at each time point
print(channel.max_values)   # max at each time point
print(channel.mean_values)  # mean at each time point

Time points

print(result.time_points)

Spatial data as NumPy arrays

# 3D array for a specific channel and time
data = result.get_slice("s0", time_index=3)
print(data.shape)  # e.g., (50, 50, 50)

Zarr dataset

Results are stored as Zarr arrays for efficient access:

zarr_ds = result.zarr_dataset
print(zarr_ds.shape)  # (num_times, num_channels, nz, ny, nx)

VTK data and 3D meshes

For advanced 3D visualization and mesh operations, access the VTK data:

vtk_data = result.vtk_data

# Available methods
vtk_data.get_vtk_grid(time_index=0, var_name="s0")
vtk_data.get_vtu_file(time_index=0, var_name="s0")
vtk_data.write_mesh_animation(var_name="s0", output_dir="mesh_anim/")

Interactive Trame widgets (Jupyter)

For interactive 3D visualization in Jupyter notebooks, use the Trame widget:

from pyvcell.sim_results.widget import App

app = App(vtk_data=result.vtk_data)
await app.run()

This launches an interactive 3D viewer in the notebook with controls for time stepping, variable selection, and camera manipulation.

Trame requirements

The Trame widget requires Jupyter with the trame-jupyter-extension installed. This is included in pyvcell's dev dependencies.

Post-processing statistics

Access variable statistics from the simulation:

post_processing = result.post_processing
for var in post_processing.variables:
    print(f"{var.var_name}: unit={var.stat_var_unit}")

Complete example

import pyvcell.vcml as vc

biomodel = vc.load_vcml_file("model.vcml")
result = vc.simulate(biomodel, "sim1")

# Time series
result.plotter.plot_concentrations()

# Spatial visualization
result.plotter.plot_slice_2d(time_index=0, channel_name="s0", z_index=5)
result.plotter.plot_slice_3d(time_index=3, channel_id="s0")

# Animation
anim = result.plotter.animate_channel_3d(channel_id="s0")

# Raw data
data = result.get_slice("s0", time_index=3)
print(f"Data shape: {data.shape}, min={data.min():.2f}, max={data.max():.2f}")

Interactive tutorial

See the Visualization tutorial for a runnable notebook with visual output. Also see the widget notebook for Trame widget examples, and the SBML workflow notebook for comprehensive plotting examples.
